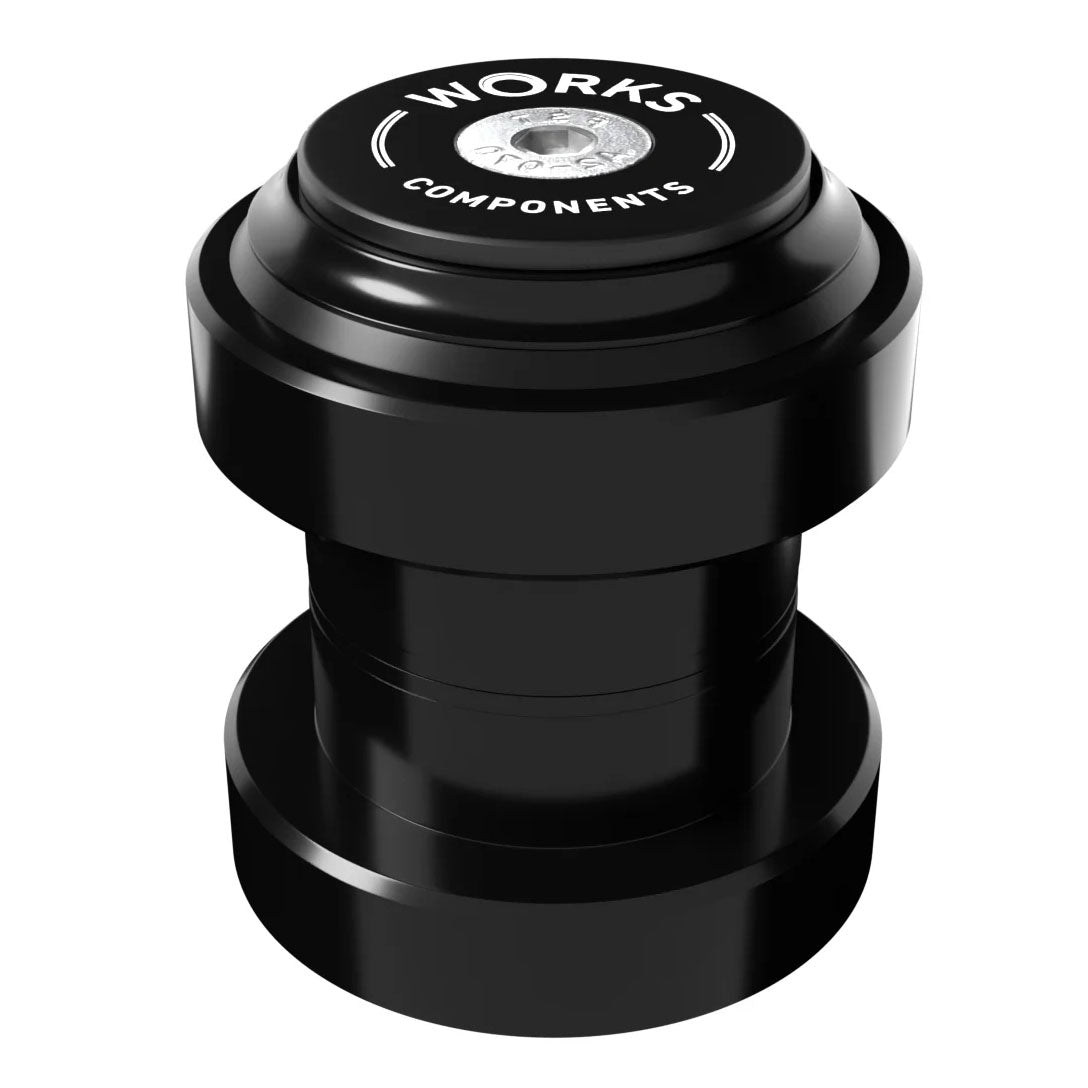

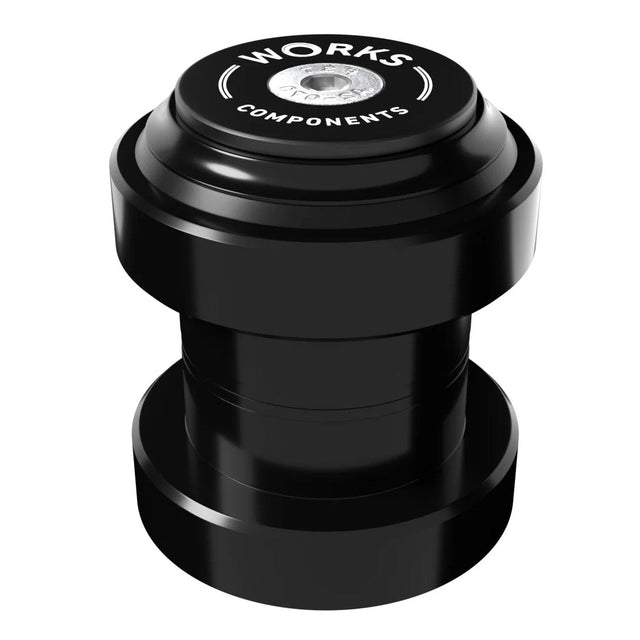

Works Components 1° Angle Headset - EC34|EC34 - 97-106mm HT
$ 99.99
Unit price
/
Unavailable
SKU:
WCH3434-1D-2
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped out within 1 business day! Add this item to your cart to see shipping options at checkout.
Works Components 1.0° angle-adjust headset with EC34 upper and EC34 lower cups for 1 1/8" steerer tubes and head tubes between 97-106mm in length . CNC-machined in the UK from 7075-T6 aluminum with sealed bearings. Allows + or - geometry adjustment. Fits frames with 34mm upper and 34mm lower internal head tubes. 1 1/8" steerer tube compatible. Ideal for trail, enduro, road and downhill bikes.
Works Components Angled Headsets Explained
- Adjusts the bike’s head tube angle by 1.0 degree
- 1.0 degree headset will lengthen a bikes wheelbase by around 10mm, and lower the bottom bracket by 2mm
- Due to angled nature, headsets are head tube length specific. This headset is suited for head tubes between 97-106mm in length
- Precision CNC-machined from 6082-T6 aluminum and anodized in the UK
- Includes top-cap, star nut, bearings and crown race
- TECH SPECS
| Model | 1.0 Degree Angle Headset |
| S.H.I.S. | EC34/28.6 / EC34/30 |
| Stack | 16mm/11mm |
| Head tube Length | 97-106mm |
| Head tube Internal Diameter | Upper: 33.95mm (EC34) / Lower: 33.95mm (EC34) |
| Cup Insertion Depth | Upper: 12mm / Lower: 12mm |
| Upper Bearing | 41mm OD, 45 x 45° AC sealed bearing |
| Lower Bearing | 41mm OD, 45 x 45° AC sealed bearing |
| Color | Black |
