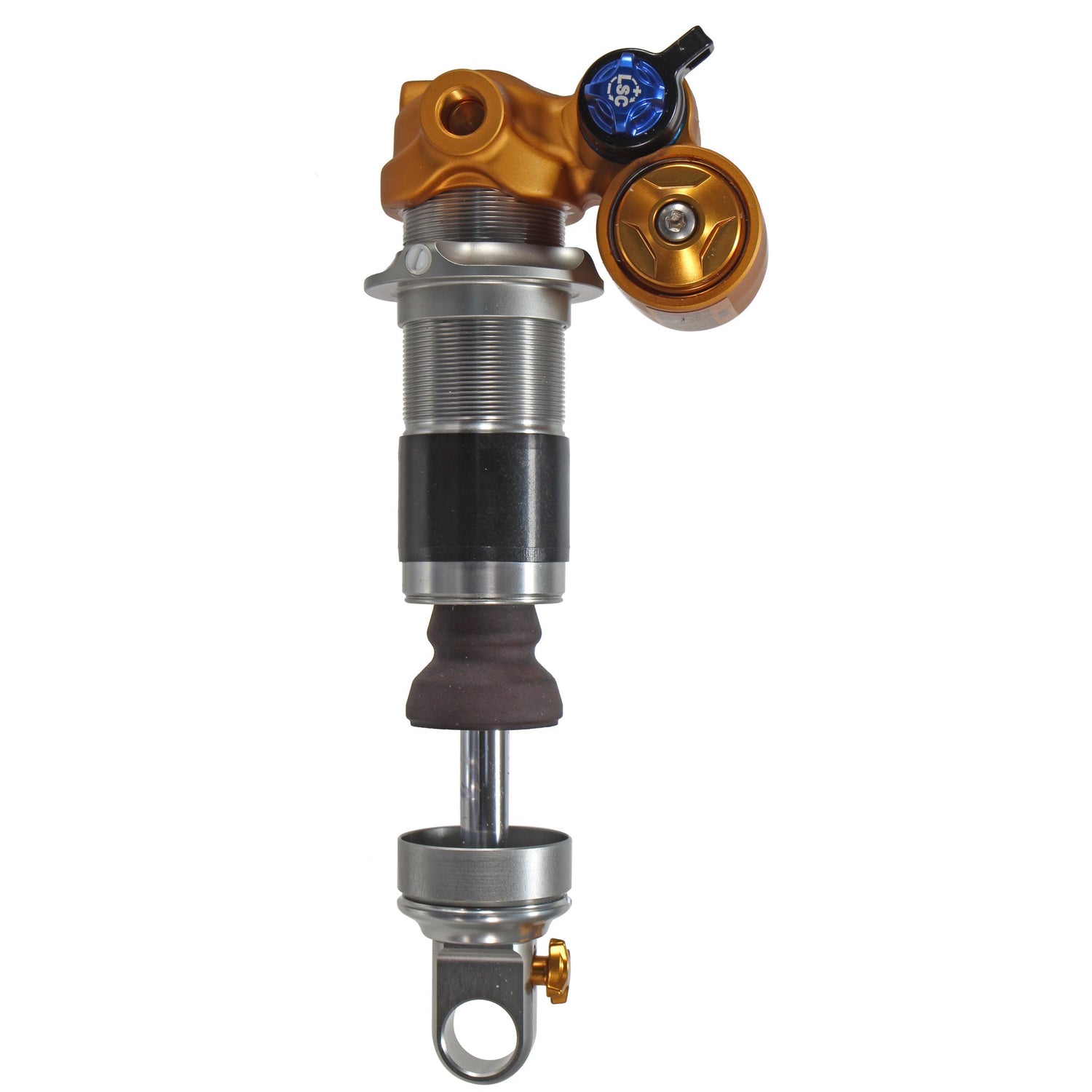

Ohlins TTX22M.2 Coil Shock - Trunnion 205mm X 57.5/60/62.5/65

Regular price
$ 825.00 USD
Sale price
$ 825.00 USD
Quantity must be 1 or more
In Stock, Ready to Ship!
B-OH2291
This item ships globally

Pickup Not Available in our Bellingham, WA shop Store Info

    Pickup Not Available in our Bellingham, WA shop


  • World Cup proven, specifically designed for the DH and Trail segments with better end stroke control and improved adjustment range
  • Trunnion mount: the linkage bolts directly to the sides of the cylinder head
  • Improved bottom out performance, courtesy of a newly designed bump rubber
  • Possible to simply adjust stroke with the three 2.5 mm spacers included in the box
  • External 3 level high-speed compression adjustment
  • External 16 click low-speed compression adjustment
  • External 7 click rebound adjustment
  • Stability mode to reduce suspension movement during less technical climbs
  • Suitable for the lightweight springs
  • Mounting hardware sold separately, end eyes are 15mm
  • 486g
    • TECH SPECS
    model TTX22M.2 Coil
    stroke 57.5/60/62.5/65mm
    eye-eye 205mm (trunnion)
