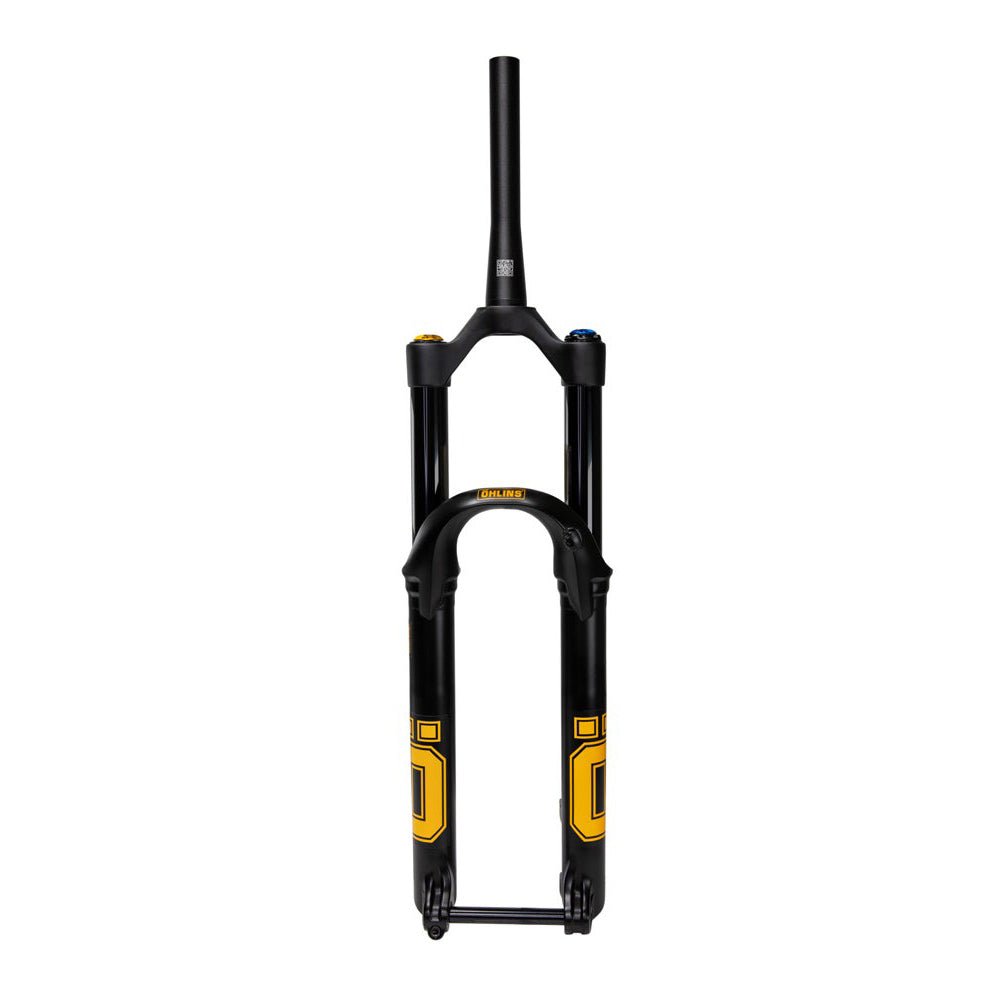

Ohlins RXF36 M.3 - 29" - 140mm - 44mm Offset
$ 1,369.50
Unit price
/
Unavailable
SKU:
FGMTB 3614 2411
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped out within 1 business day! Add this item to your cart to see shipping options at checkout.
The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 cartridge. This lightweight and highly progressive fork is fully optimized for demanding, next-level trail riding performance.
The race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. With the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Öhlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.
The RXF36 m.3’s adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features a floating axle design for minimal friction and weighs 2050g (with bolts and axle). The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement, right through to the bottom out. The air spring is cartridge-based, allowing for easy swaps between coil and air if desired.
- TECH SPECS
| Model | Ohlins RXF36 M.3 |
| Wheel Size | 29" |
| Steerer (Stem/Race) | Tapered |
| Offset | 44 |
| Travel | 140mm (adjustable between 140mm and 160mm by swapping air spring) |
| Max Tire Width | 2.6" |
| Spring Type | Air |
| Brake Mount | 180mm Post Mount |
| Hub Spacing | 15x110mm |
| Axle to Crown | 553mm |
| Weight | 2050g (with bolts and axle) |
| Color | Black |
