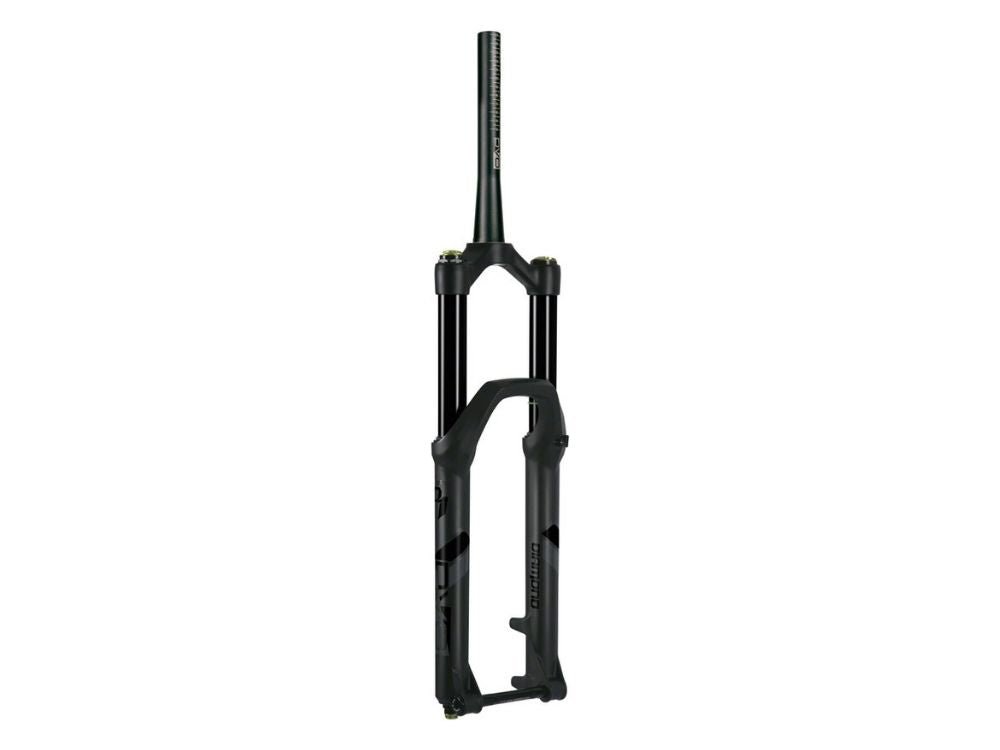

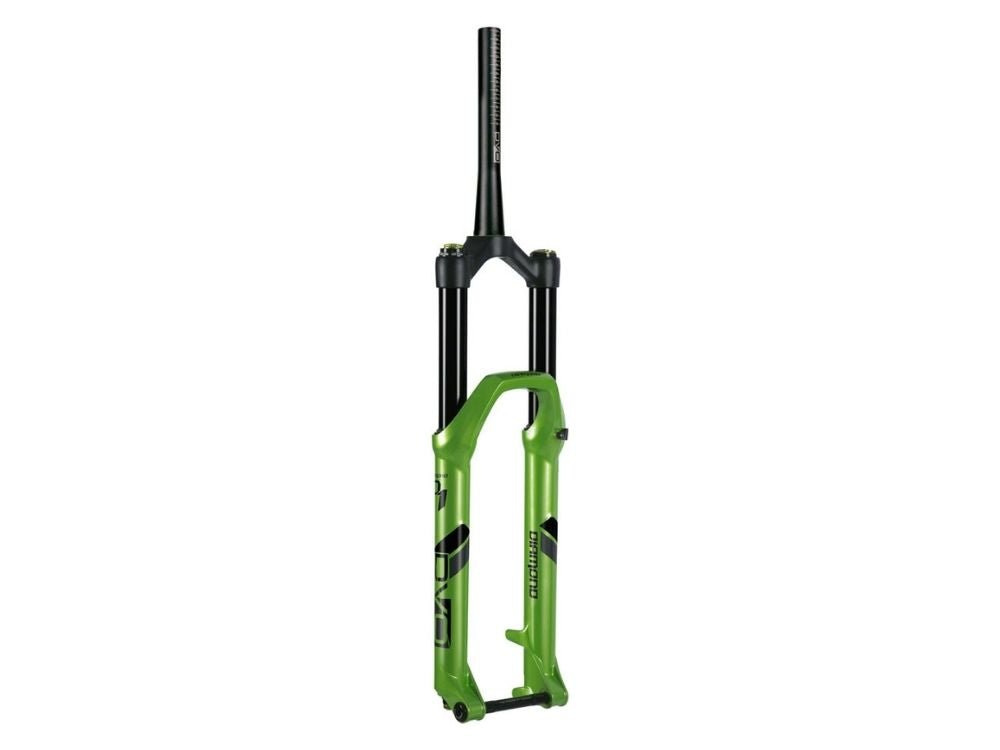

DVO Diamond - 29", 44mm Offset

An enduro/trail fork that offers quick, dynamic tunability of the negative air spring and high/low speed compression without dropping the fork from the bike or losing any oil.

• 35mm Tapered alloy stanchions
• Fender snaps in place with one bolt
• Off The Top (OTT) allows external preload adjustment of the negative spring, for small bump compliance without sacrificing mid-stroke feel
• Top Loader Compression circuit can be removed, reconfigured, and reinstalled without removing the fork from the bike or the wheel from the fork
• A compressed, closed damping cartridge bladder eliminates breakaway forces and offers small bump sensitivity
• Externally adjustable rebound, high speed and, low-speed damping

• Positive Spring: Air
• Wheel Size: 29"
• Brake Type: Post Mount 160
• Crown Race: 40
• External Adjustments: High-Speed Compression Damping, Low-Speed Compression Damping, Rebound Damping
• Negative Spring: Air
• Stanchion Diameter: 35mm
• Steerer Type: Tapered
• Offset: 44mm
• Steerer Tube Length (mm): 255

• Front Axle: 15mm Thru x 110mm
• S.H.I.S. Stem Clamp Diameter: 28.6
• Travel: 160mm
• Axle to Crown Length: 572mm
• Weight: 2150g
