2025 Fox 34 Grip X2 Damper Upgrade Kit

New for model year 2025 is the Fox GRIP X2 Damper. Built off of the foundation of the wildly successful GRIP2 damper, the GRIP X2 is built for utmost performance and adjustability. The GRIP2 damper had a 20mm base valve and 7 shims, while the GRIP X2 has an oversized 24mm base valve and 23 shims. This results in more sensitivity and a wider range of adjustability within the clicks. The increased range of adjustability also means that the GRIP X2 is easier to tune than the GRIP2 since each individual click makes a more noticeable difference in feel.

This upgrade kit will fit any 2016 or newer Fox 34 that is not the Rhythm or Step-Cast series forks.

• This upgrade kit includes (1) Fox 34 GRIP X2 damper

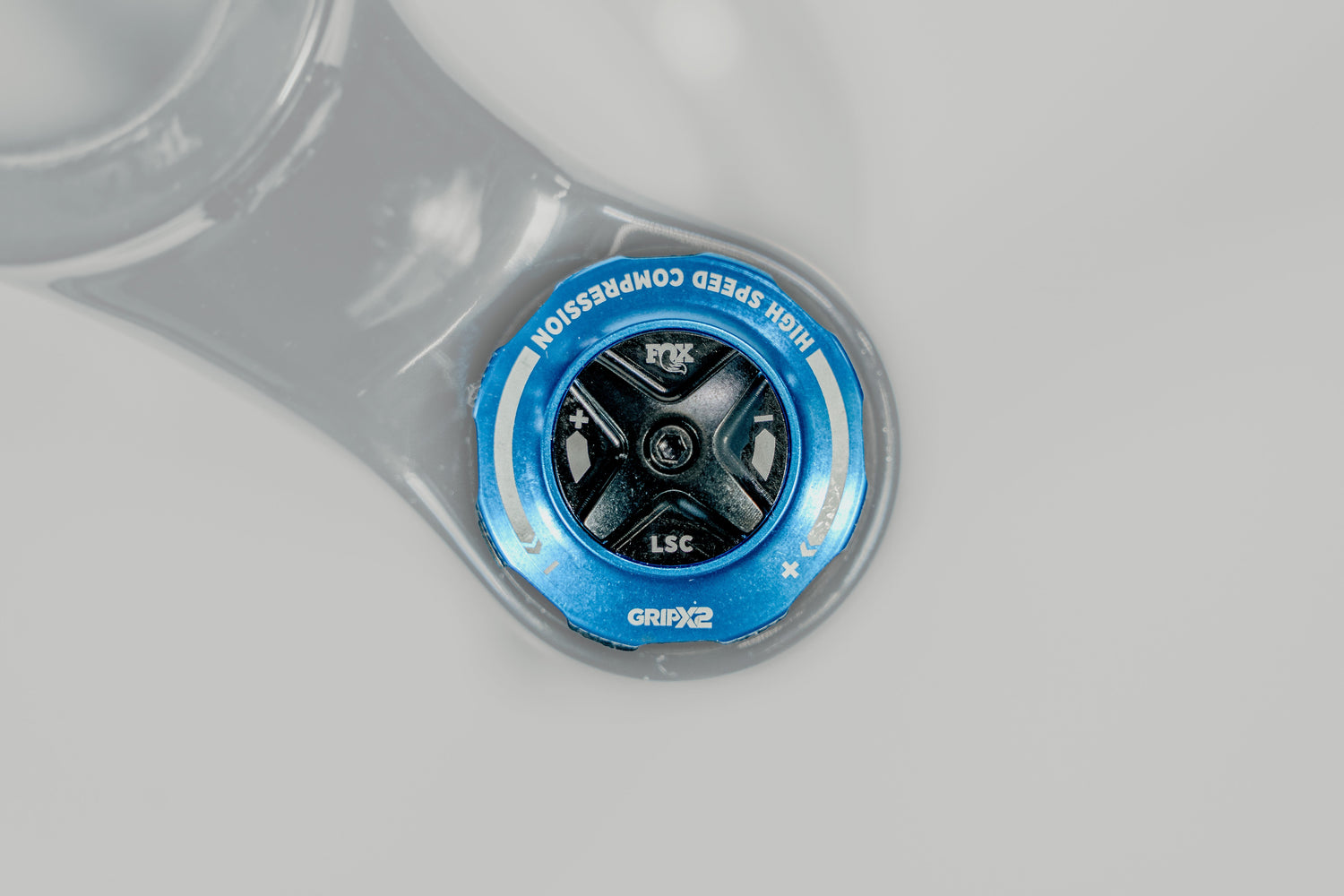

• This upgrade allows you to control High/Low Speed Compression and High/Low Speed Rebound
• Much more sensitive and plush than the FIT4 and FIT RC2 Dampers.
• Pair up your fork with your DHX2 or Float X2 rear shock for matching performance front and rear.

*NOTE - Fox 4wt Suspension Oil is required for the GRIP X2 damper.

Fox 34 GRIP X2 Damper Maximum Travel (DO NOT EXCEED):

• 29" Fork = 140mm
• 27.5" = 150mm
