Fox Shock Mounting Hardware

Regular price
$ 16.50 USD
Sale price
$ 16.50 USD
Quantity must be 1 or more
In Stock, Ready to Ship!
803-03-326
Ships within USA only

Pickup Available in our Bellingham, WA shop Store Info

  • The Lost Co

    Pickup Available, usually ready in 24 hours

    2106 Pacific Street
    Ste 102
    Bellingham WA 98229
    United States

    +1 (360) 306-8827


Mounting hardware kit for rear shocks, most commonly used in Fox shocks like the DHX2 and DHX, and the Marzocchi Bomber CR.

Compatible with any brand or model of shock with eyelets with an inner diameter of 15mm and width of 12.7mm (1/2").

Compatible with RockShox shocks, DVO shocks, current generation Ohlins shocks, and most 2017+ Cane Creek shocks. If your shock has metal DU bushings pressed into the eyelets, you will just need to press those out first. This Fox hardware will then install directly into the naked eyelets.

You will have to purchase two sets of mounting hardware to install your shock on your bike, unless you have a trunnion shock which only has an open eyelet on one end. The trunnion end mounts to your frame using bolts that are included with your frame.

Each bike needs an exact size of mounting hardware to ensure correct fitment. If you are unsure of the exact size you need, check out our comprehensive database, or watch the video below. If you're still confused, please contact us. We are happy to help you!

MPN:803-03-326
//
UPC:821973392950
Liquid error (snippets/product-form.liquid line 26): include usage is not allowed in this context .

Watch this video to answer your mounting hardware questions:


FAQ

What is included with Fox mounting hardware?

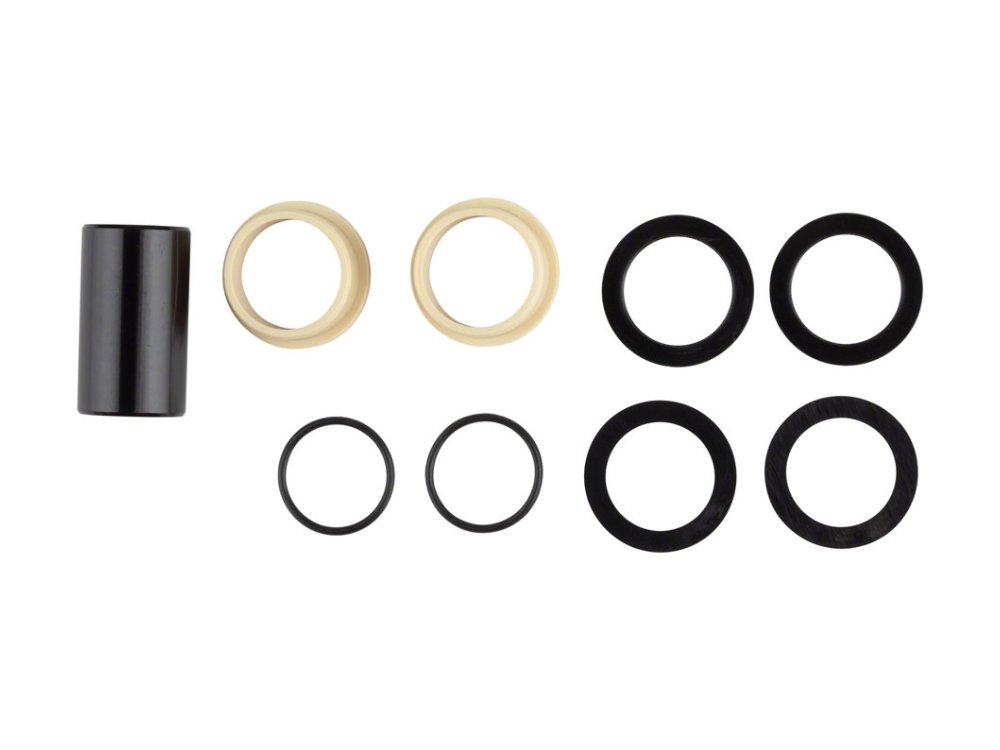

The exact items included differ depending on which sizes you purchase. However, all you have to do is ensure that you are ordering the correct sizes for your frame and you're all good! The package will include an inner sleeve/pin, (2) IGUS bushings with o-ring seals, and several outer spacers depending on the size.

Can you install Fox mounting hardware into a RockShox shock?


Yes, because the shock eyelets are the same size. You just need to press out the metal DU bushings from the RockShox shock eyelets and then install the white plastic IGUS bushings included with the Fox hardware by simply pushing them in with your thumb. We recommend using a DU Bushing Removal Tool to quickly and easily press out the metal DU bushings.

Can you install Fox mounting hardware into other brands of shocks like DVO, Ohlins and Cane Creek?


In almost every case, yes you can install Fox mounting hardware into a different brand of shock. Eyelet sizing in rear shocks is pretty standardized these days, and almost every brand uses an eyelet with an inner diameter of 15mm and width of 12.7mm (1/2") which is what Fox mounting hardware is built for. If you have a modern shock, with an approximate model year of 2017 and newer, you can bet that the eyelet size is going to be the standard 15mm x 12.7mm eyelet size. This is absolutely true with all modern RockShox, Fox, DVO and Ohlins shocks.

However, some brands have used some different eyelet sizes in years previous to ~2017, so we recommend that you measure those eyelets with calipers to double check. And if your shock is older and dates back to the mid 2000's or older, we recommend measuring your eyelets to confirm your eyelet sizes no matter what.

Can you install Fox hardware with metal DU bushings instead of IGUS bushings?


While it may sometimes seem like the inner sleeve/pin from Fox mounting hardware will fit into a metal DU bushing most commonly seen on RockShox shocks, it will not. The sizing is very close, but not the same, and attempting to forcefully press together these mismatched pieces of hardware is absoutely not recommended. Fox designs all of their mounting hardware around fitment with IGUS bushings.

If you have a shock with metal DU bushings installed, you will just need to purchase a DU Bushing Removal Tool to press out the metal DU bushings and then simply push the new IGUS bushings into the eyelets. (2) IGUS bushings are included in each set of Fox mounting hardware.

My frame uses 22mm wide mounting hardware, but that size isn't an option?


If your mountain bike frame is specced for a 22mm wide mounting hardware such as m6x22, m8x22 or m10x22, you will notice that these are not options for the sizes of Fox Mounting Hardware.

In this situation you will simply order the 21.84mm width. Your frame will have enough tolerance to slightly squeeze together to accomodate for the slightly more narrow hardware. Do not order the 22mm width as the frame will likely not tolerate opening up to fit the slightly wider hardware.
