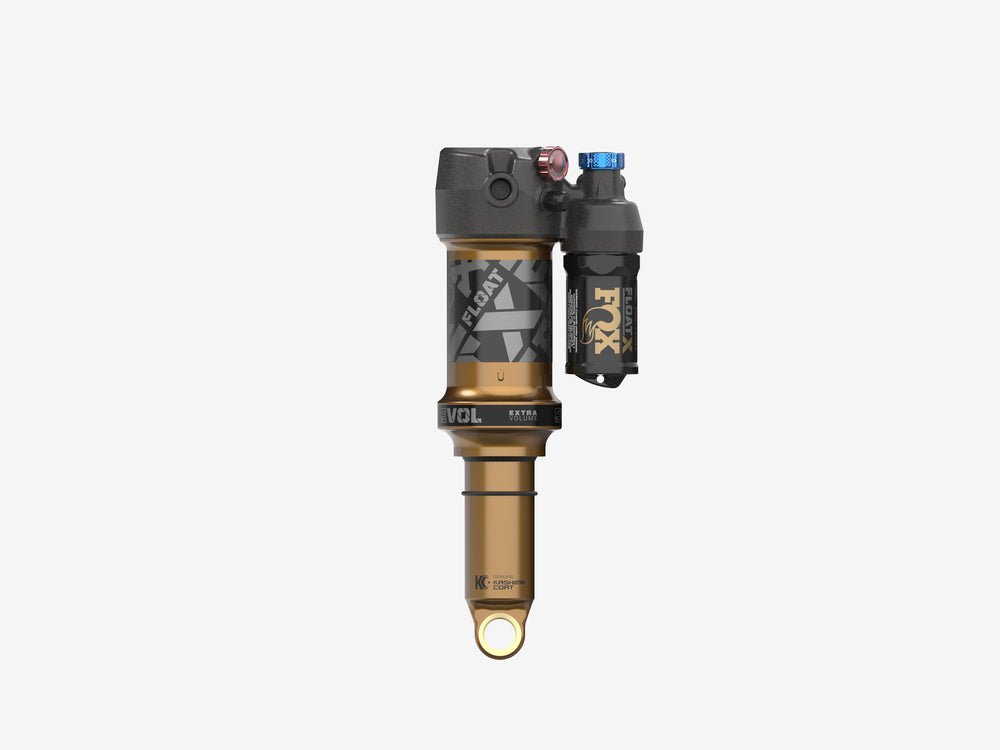

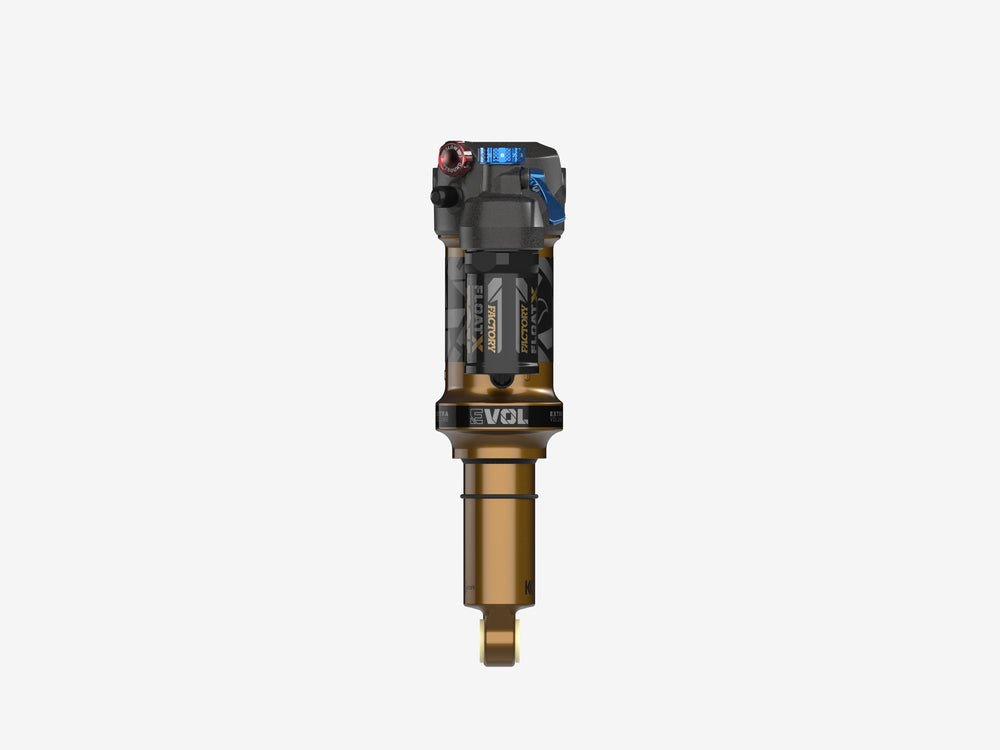

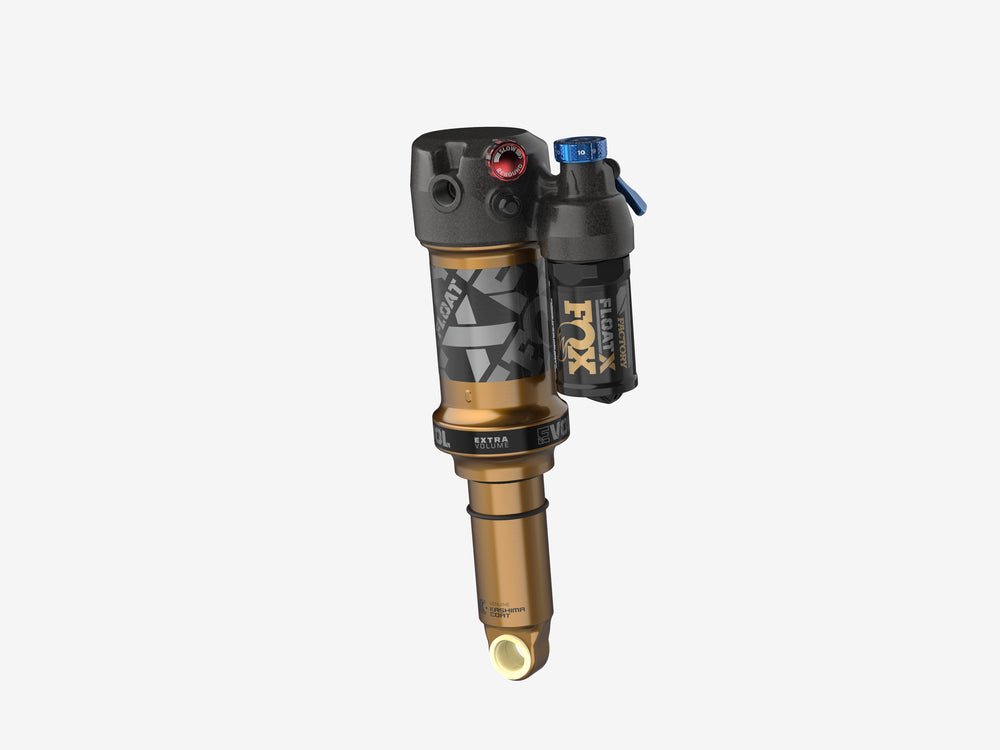

2025 Fox Float X Factory Series Shock - 205 x 60/62.5/65 mm

The Fox Float X packs the attitude of a DH shock into a tidy, trail shock-sized package. The sleek design and size of the air can and reservoir create plenty of room for fitment on almost every bike on the market. Redesigned in model year 2022, the Float X features a high-flow damper with simple adjustability for a smooth ride and pain-free adjustment procedure. The EVOL air can supplies a plush and supportive experience, and is highly tunable with volume spacers. Available in an array of sizes, the Float X is the epitome of an All-Mountain shock as it can be utilized on Downcountry bikes, Enduro bikes and everything in between. Engineered with modern, aggressive trail riding in mind, the Float X is the Fox shock for you if you want an impressive amount of performance, a supportive ride feel and a straightforward set of adjustments to slay the trails with ease.

Wondering what size mounting hardware you might need? Or if you even need hardware at all? Check out our Complete Guide To Rear Shock Mounting Hardware

Model, Size and Adjustments:

• Fox Float X Factory Series w/ Kashima Coating


• Low-Speed Compression - 11 clicks
• Low-Speed Rebound - 16 clicks
• Independent 2-Position Climb Switch


• Trunnion - 205x60, 205x62.5, 205x65
• Not the size you need? Shop All Fox Float X2 Shocks

MY22+ Fox Float X Shock Specs:

• ALL-NEW chassis and damper
• High-flow main piston
• Air seal package
• Volume spacers with smaller increments (sold separately)
• MCU bottom out bumper
• Numbered tool-free 12 position Low-Speed Compression adjuster
• Increased rebound adjuster range over DPX2
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
• Bearing hardware compatible eyelets on both sides
• Air valve location offers improved frame fitment and pump access

Other Content and Accessories related to the Fox Float X:

Volume Spacer Kits can be purchased separately to increase air spring tuning.

Need help setting up your new Float X? Check out our in-depth suspension set up guide to get this shock dialed in!

Grab a shock pump to inflate your shock.

To perform an air can service, you'll need an Float X Air Can Seal Kit as well as Fox Gold 20wt Oil
