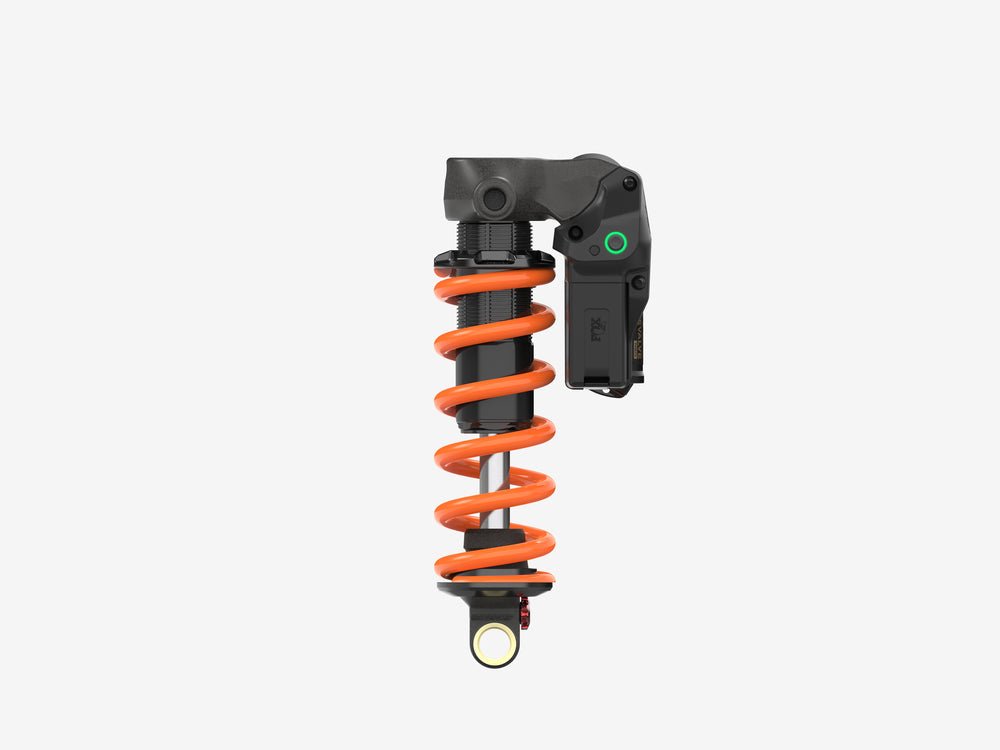

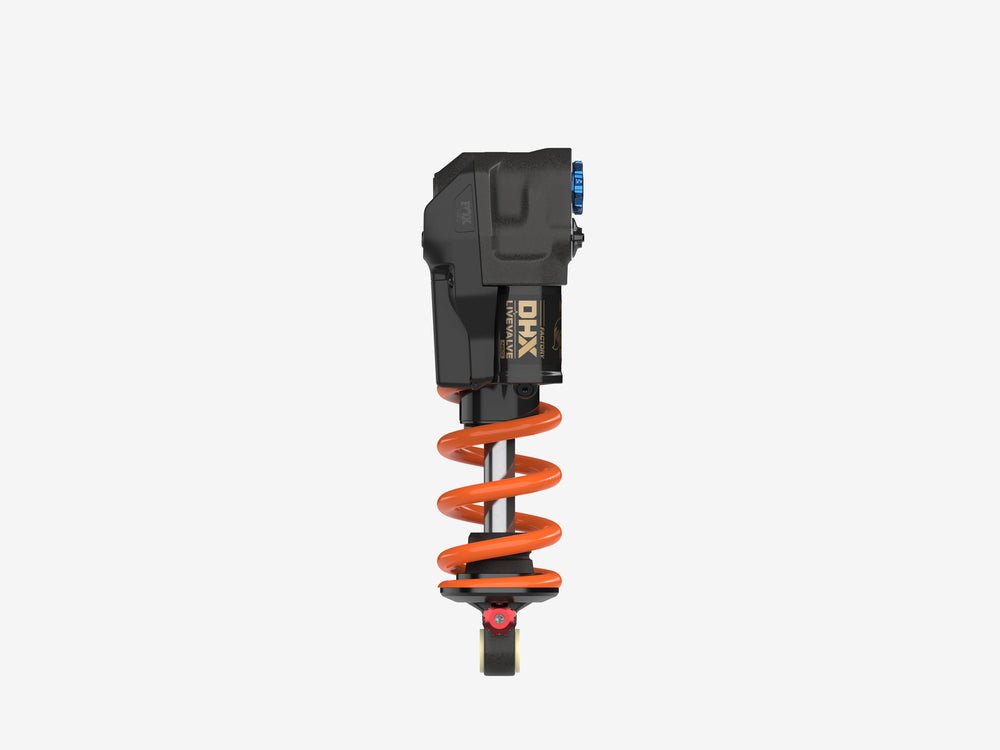

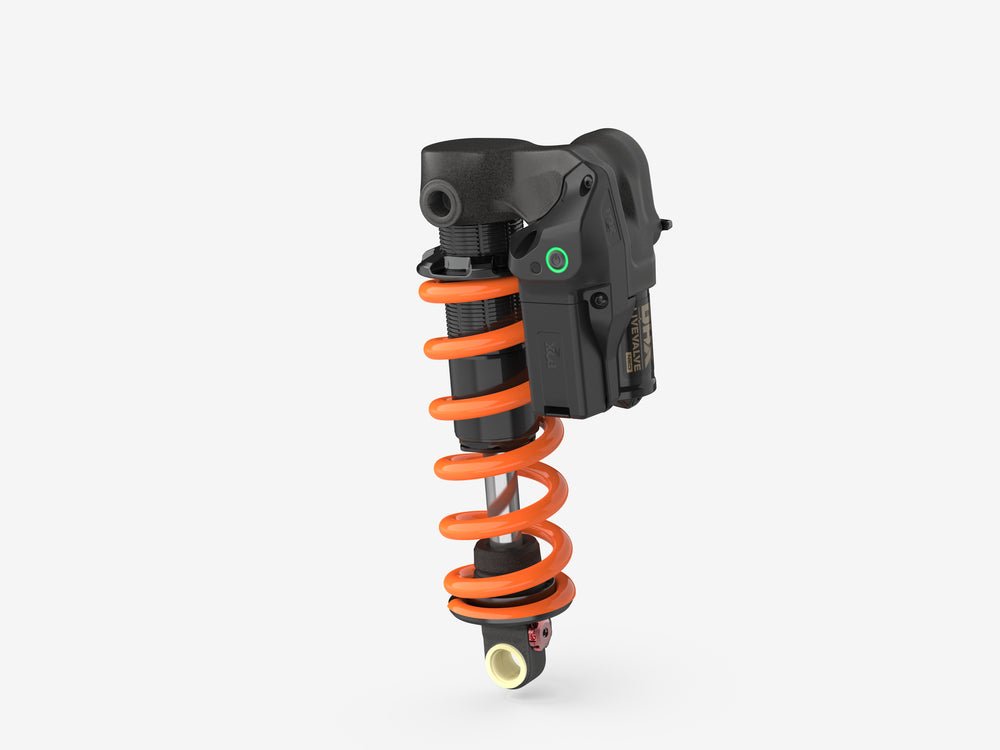

2025 Fox DHX Live Valve Neo Shock - 205 x 60/62.5 mm

Requires the Live Valve Neo Kit which is sold separately.

The Fox DHX Live Valve Neo builds on the DHX platform that packs DH coil performance in a trail shock sized package, but now with increased efficiency from the Live Valve system. Live Valve Neo uses sensors at both wheels to firm up your shock to increase pedaling efficiency on the climbs and open it up when you're looking for traction on the way down. Live Valve is ultra customizable with the Fox Bike app, letting you take complete control over what opens or closes the compression circuit on your shock, and you can read all about it in our in depth review!

Looking past the Live Valve Neo technology, Fox DHX serves riders who seek coil-sprung trail magic in a sleek, simple package that fits on a super wide range of bikes. Enjoy near similar performance to the Fox DHX2 while also enjoying a more straightforward set of adjustments.

Wondering what size mounting hardware you might need? Or if you even need hardware at all? Check out our Complete Guide To Rear Shock Mounting Hardware

*Please Note: Coil shocks and springs are sold separately.

Model, Size and Adjustments:

• Fox DHX Live Valve Neo Factory Series


• Low-Speed Compression: 11 Clicks
• Low-Speed Rebound: 16 Clicks
• Firm Mode Adjuster: 6 Clicks

• Coil Spring Preload Collar w/ Detents

• 205x57.5/60/62.5/65mm
• Trunnion Mount
• Not the size you need? Shop All Fox Live Valve Neo Shocks

MY22+ Fox Factory DHX Specs:

• ALL-NEW chassis and damper
• High-flow main piston
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• MCU bottom out bumper
• Single-turn rebound adjuster with a variety
• of access modes (Tool-free, 3mm hex (direct access),
• Spring preload collar with detents and max / min number of clicks and direction arrow
• Full diameter spring retainer with wire ring (like DHX2)
• Spring scuff guard on body (like DHX2)

Other Accessories and Content related to the Fox DHX Live Valve Neo:

Wondering what size mounting hardware you might need? Or if you even need hardware at all? Check out our Complete Guide To Rear Shock Mounting Hardware to bolt the DHX to your frame!

Need help setting up your fancy new DHX? Check out our in-depth suspension set up guide to get this shock dialed in!

Coil spring sold separately, use our spring fitment guide to get the right one for your shock.

Use our spring rate calculator to get the right weight spring for you, your bike, and your riding style.

Need help figuring out which spring to get? Check out our SLS VS Steel Springs blog to see the weight differences between the two.
